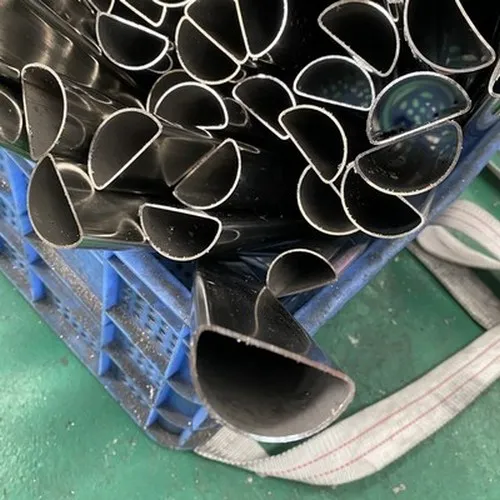

Stainless steel shaped tube

Stainless steel shaped pipes are corrosion-resistant, hygienic and easy to maintain. Stainless steel is also an extremely sustainable material because it can be completely recycled at the end of its useful life.

Get Free Quote Contact Us

Product Categories

Steel Pipe
Carbon Steel Pipe Galvanized Steel Pipe Honing steel pipe Shaped steel pipe Stainless Steel Pipe Seamless Steel Pipe Alloy seamless steel pipe Stainless Steel Seamless Pipe Seamless Carbon Steel Pipe Spiral Steel Pipe Welded Steel Pipe Straight Seam Steel Pipe Cold-Drawn Seamless Steel Tube Hydraulic Steel Pipe Boiler Steel Pipe
Steel plate
Stainless steel plate Carbon steel plate alloy steel plate Wear-resistant steel plate Boiler Steel Plate Shipbuilding Steel Plate Cold Rolled Steel Plate Hot Rolled Steel Plate Spring Steel weather-resistant steel plate High Strength Steel Plate Pressure Vessel Steel Plate Color Coated Steel Plate/Coil
Bar
stainless steel bar Carbon steel bar Alloy Steel Bar Galvanized Steel Bar
Wire Rod
Stainless Steel Wire Carbon Steel Wire Galvanized Steel Wire Alloy Steel Wire
Steel Coil
Stainless Steel Coil Carbon Steel Coil Prepainted Steel Coil Galvanized Steel Coil Alloy Steel Coil Aluminium Steel Coil Hot rolled steel coil Cold-Rolled Steel Coil Copper Coil
Steel Profiles
H-Beam Angle steel U-bar I-beam Channel steel flat steel square steel steel rail Special-shaped steel

Related products

Steel Pipe
ASTM A209 Alloy-Steel Boiler ASTM A192 Seamless Steel Boiler Tubes ASTM A213 Seamless Carbon Steel Boiler Tube ASTM A210 Seamless Steel Boiler Pipe Boiler steel pipe cold-rolled precision seamless pipe
Steel plate
Color coated stainless steel sheet for decoration Black stainless steel sheets color coated manufacturer Brushed Color Coated 201 Stainless Steel Sheet Color coated steel coil Color coated steel sheet/coil Color coated steel plate
Bar
Galvanized flat steel Q345 galvanized steel bar Galvanized Steel Bar Nickel Alloy 200 Bar Monel 400 Bar Inconel 601 Bar
Wire Rod
Alloy steel wire Zinc Coated Hot Dipped Gi Galvanised Wire Rod 3.5mm galvanized steel wire 4mm High tensile Galvanized steel wire 2.5mmGalvanized steel wire 0.33mm Galvanized steel wire
Steel Coil
C26800/H65 Brass Coil C23000/H85 Brass Coil C26000/H70 Brass Coil C12000/TP1 Copper Coil C22000/H90 Brass Coil C21000/H96 Brass Coil
Steel Profiles
Shaped Steel Tube Stainless steel shaped tube Special-shaped Steel H beam Steel Q235B h beam ASTM A36 H Beam
Get in touch
Shaped Steel Tube
Get Free Quote
Stainless steel shaped tube
Get Free Quote
Special-shaped Steel
Get Free Quote

Stainless steel shaped tube description

Stainless steel shaped steel pipe is a general term for steel pipe with a cross-sectional shape other than a round pipe, there are welded shaped pipe and seamless shaped pipe. Because of the material, stainless steel shaped pipe is generally more than 304 material, 200, 201 material hardness, forming difficulty.


Stainless steel round tube, stainless steel square tube, stainless steel rectangular tube for stainless steel conventional pipe.
Stainless steel shaped tube is widely used in a variety of structural parts, tools and mechanical parts. Compared with round tubes, stainless steel shaped tubes generally have a larger moment of inertia and cross-sectional modulus, have greater resistance to bending and torsion, can greatly reduce the weight of the structure, saving steel.

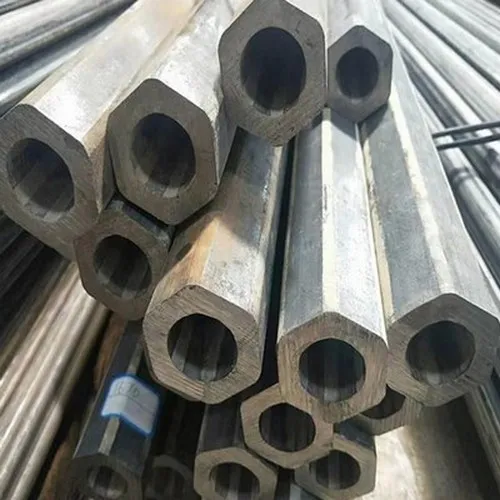

Stainless steel shaped pipe is generally based on the broken cross-section, the overall shape to distinguish, generally can be divided into: oval shaped steel pipe, triangular shaped steel pipe, hexagonal shaped steel pipe, rhombus shaped steel pipe, stainless steel patterned pipe, stainless steel U-shaped steel pipe, D-shaped pipe, stainless steel bend, S-shaped pipe bend, octagonal shaped steel pipe, semi-circular shaped steel circle, unequal hexagonal shaped steel pipe, five-petal plum-shaped shaped steel pipe, Double convex shaped steel pipe, double concave shaped steel pipe, melon shaped shaped steel pipe, conical shaped steel pipe, corrugated shaped steel pipe, etc.


chemical composition of Stainless steel shaped tube

Material

Composition

201

202

304

316

430

C

≤0.15

≤0.15

≤0.08

≤0.08

≤0.12

Si

≤1.00

≤1.00

≤1.00

≤1.00

≤1.00

Mn

5.5-7.5

7.5-10

≤2.00

≤2.00

≤1.00

P

≤0.06

≤0.06

≤0.045

≤0.045

≤0.040

S

≤0.03

≤0.03

≤0.030

≤0.030

≤0.030

Cr

16-18

17-19

18-20

16-18

16-18

N

3.5-5.5

4-6

8-10.5

10-14



Mo







2.0-3.0




mechanical property of Stainless steel shaped tube

Material Item

201

202

304

316

Tensile Strength

≥535

≥520

≥520

≥520

Yield Strength

≥245

≥205

≥205

≥205

Extension

≥30%

≥30%

≥35%

≥35%

Hardness (HV)

<253

<253

<200

<200


Stainless steel shaped tube specification

Name

Stainless steel special-shaped tube

Standard

ASTM A554,A249,A269 and A270,A312

Material Grade

201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%),
301(Ni 5%)
304 (Ni 8%, Cr 18%),
316 (Ni 10%, Cr 18%),
316L (Ni10%~14%), 430

Outer Diameter

6mm--159mm

Thickness

0.25mm - 3.5mm

Length

6m or as customer's request

Tolerance

a) Outer diameter: +/- 0.2mm b) Thickness: +/- 0.02mm
c) Length: +/- 5mm

Surface

180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish

Application

Decoration,handrail,balustrade

Test

Squash test,extended test,water pressure test,crystal rot test,heat treatment,NDT
