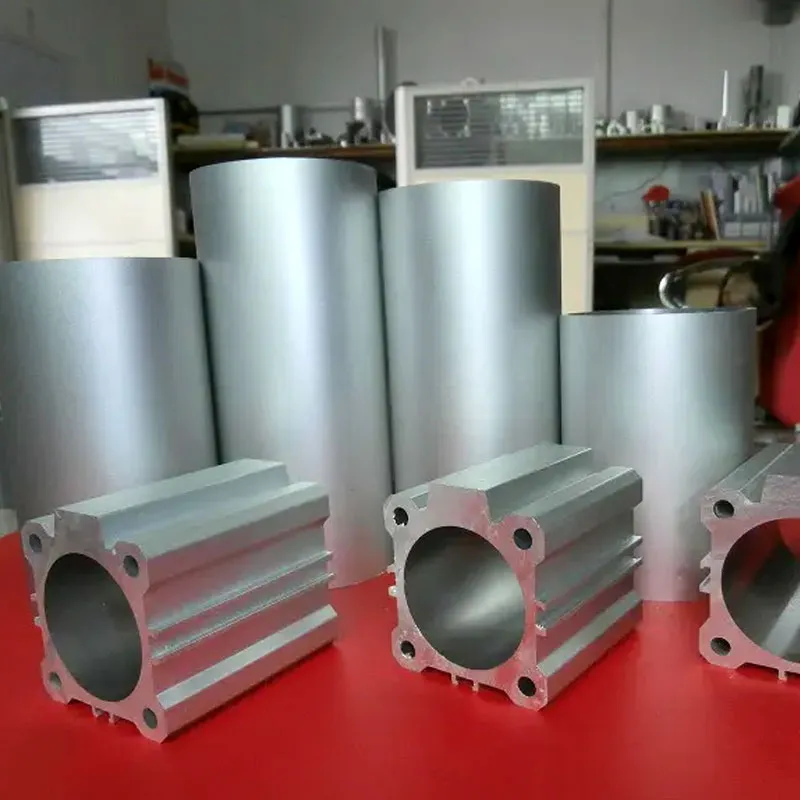

Aluminum cylinder tubing can be used for a standard cylinder, mini cylinder, compact cylinder, and slide cylinder, etc. These Aluminum cylinder tubings are all from extruded aluminum tubes that applied in various industry sectors.It is widely used in the automation industry. Our products have been exported to many countries, including the United States of America, Italy, Poland, Spain, Africa and German, and so on.For example, packaging, food processing, printing, machine tool, and automotive manufacturing, etc. Aluminum cylinder tubing plays an important role in modern machinery.
| No. | d (Bore size)mm | E(mm) | T(mm) | B(mm) | 4-d1(mm) |
| 1 | Φ32 | 43.5 x 43.5 | 32.5 x 32.5 | 11 | Φ5.5 |
| 2 | Φ40 | 49 x 49 | 38 x 38 | 10.9 | Φ5.5 |
| 3 | Φ50 | 60.5 x 60.5 | 46.5 x 46.5 | 14 | Φ7.5 |
| 4 | Φ63 | 70.5 x 70.5 | 56.5 x 56.5 | 14.15 | Φ7.5 |
| 5 | Φ80 | 90 x 90 | 72 x 72 | 18 | Φ9.4 |
| 6 | Φ100 | 107 x 107 | 89 x 89 | 18 | Φ9.4 |
| 7 | Φ125 | 135 x 135 | 110 x 110 | 20 | Φ11.2 |
| 8 | Φ160 | 176 x 176 | 140 x 140 | 26 | Φ16.5 |
| 9 | Φ200 | 214.5 x 214.5 | 175 x 175 | 26 | Φ16.5 |
Tianjin TIsco has extensive industry experience, an expert staff, and state-of-the-art equipment.
